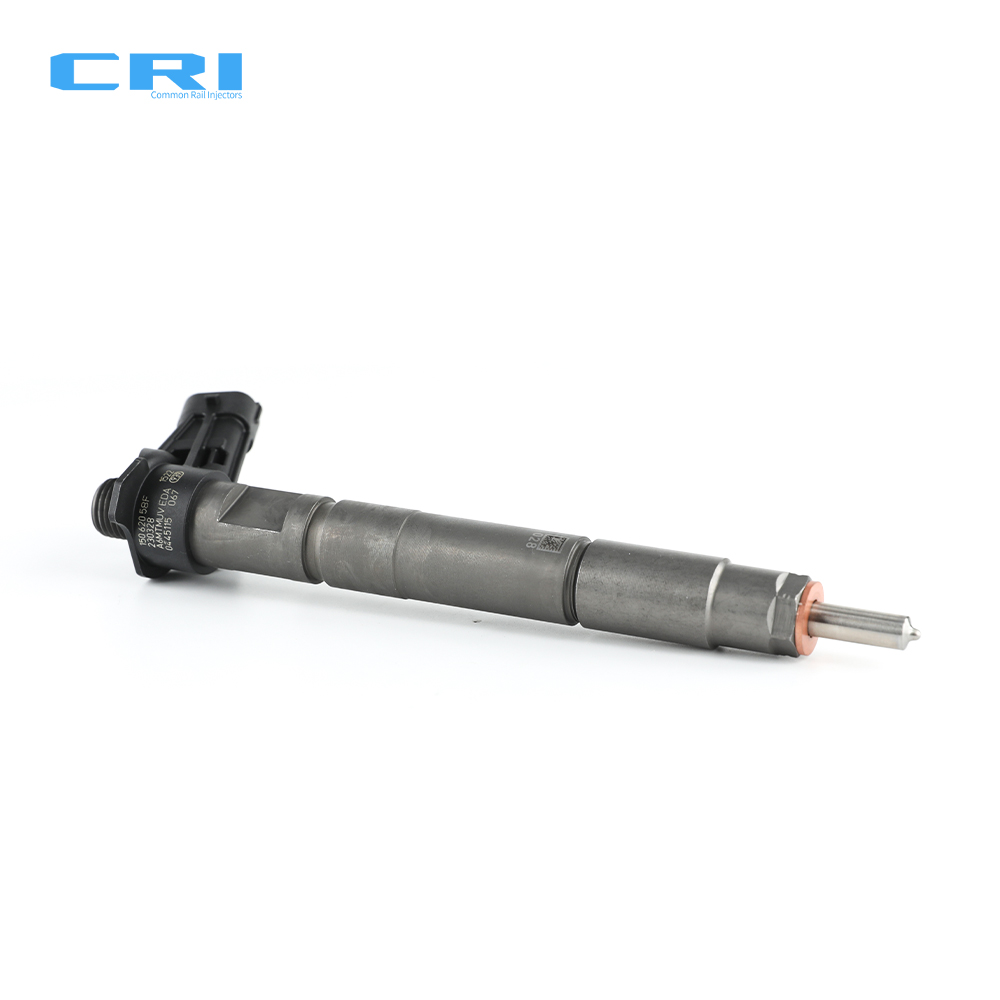

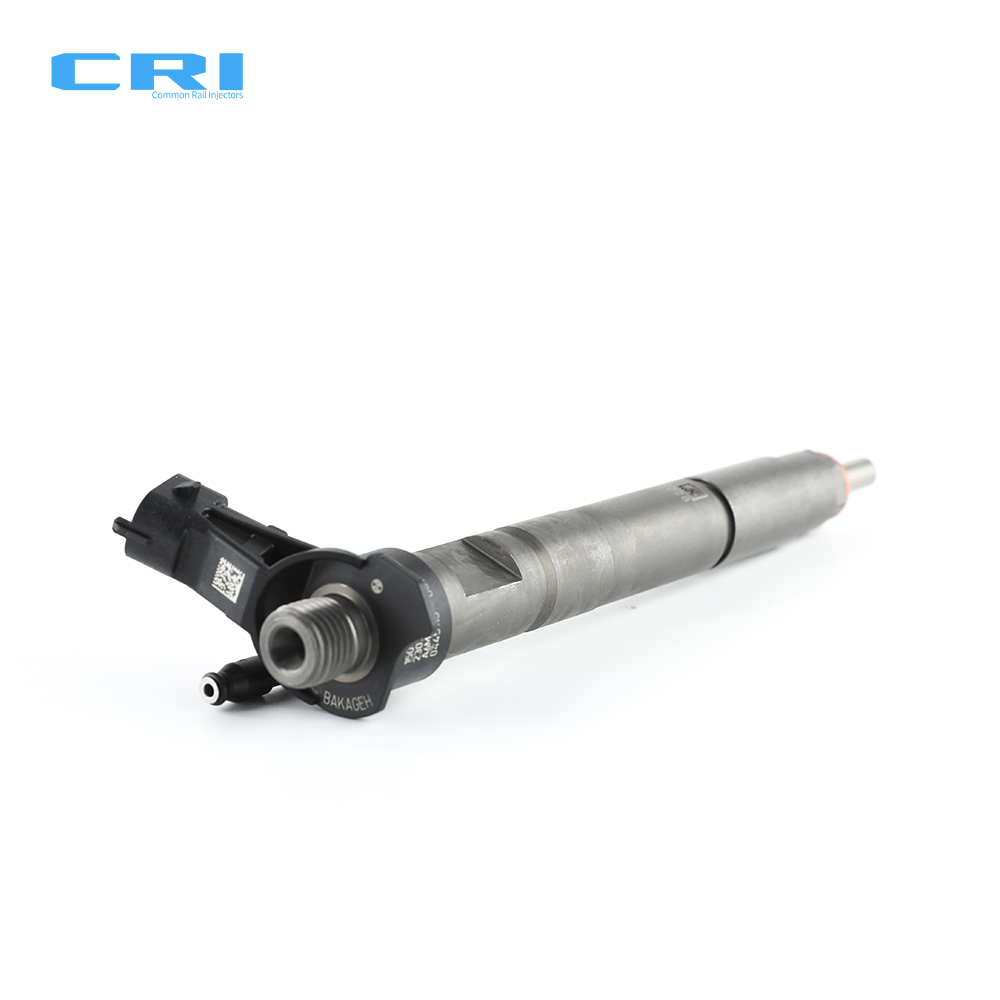

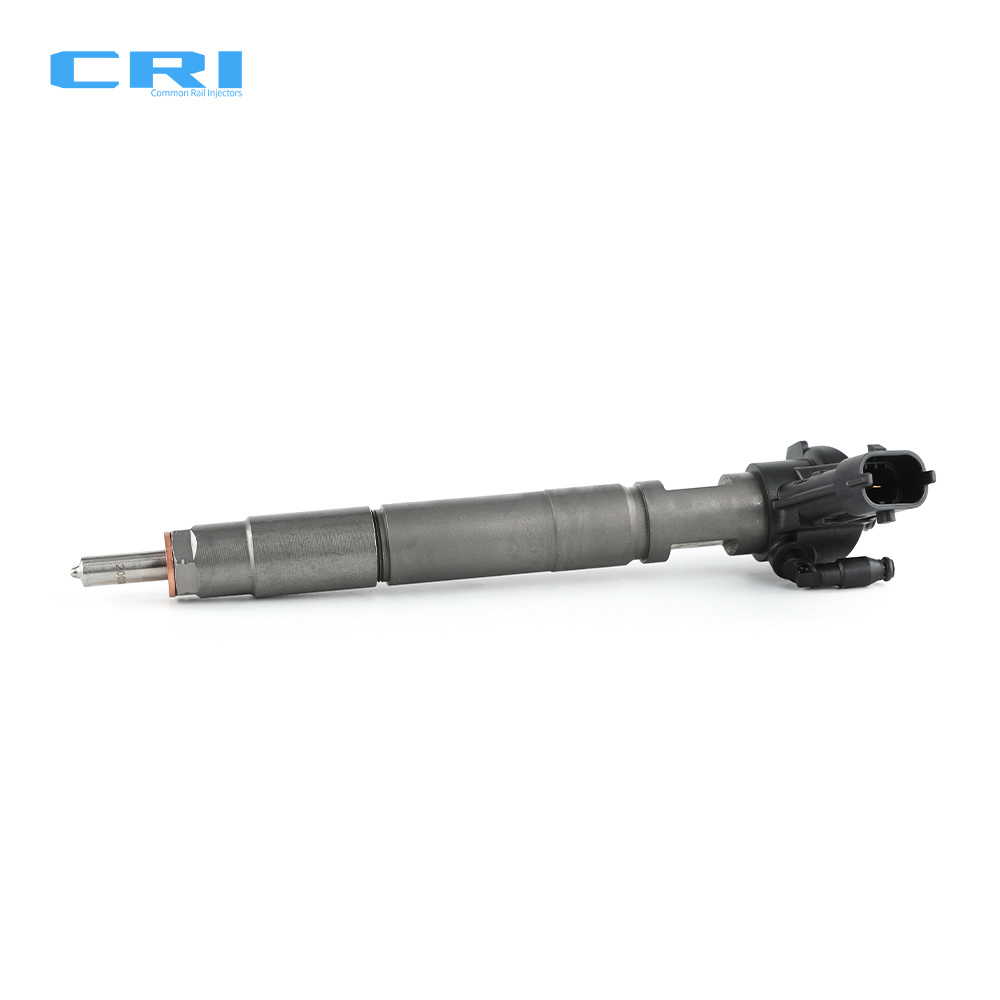

1. 0445115067 Common Rail Injector Introduction



1.1. 0445115067 Common Rail Injector Basic Information

Title	0445115067 Common Rail Injector	Quality
SKU1	Y1Z200445115067	Original New
SKU2	T30000B2B115067	Original New



1.2. 0445115067 Common Rail Injector Common Part Number

(1) Common Rail Injector Exchange Information

Common Rail Injector Part Number	Re-manufactured Part Number	OE Part Number
0445115067	0445115049	0986435402



(2) Common Rail Injector Application Information

Common Rail Injector Part Number	Car Model	Car Model	OE Part Number
0445115067	For CHRYSLER	Grand Voyager 2.8	68042 029AA
		Voyager 2.8 CRD	KRX042029AA
	For DODGE	Grand Caravan 2.8 CRD	68042029AA
	For JEEP	Cherokee 2.8 CRD 4×4	68042029AA
	For VM (MOTORI/STABILIMENTI MEC.)	/	15 06 2058F



(3) Common Rail Injector Matching Information

Vehicle brand	Series	Car Model	Engine Model	Production date	Power KW	Horse power	Emission Standards	Manufacturer	Emissions(L)	Cylinder	Power Source  V
For CHRYSLER	Piezo	Grand Voyager 2.8	ENS	09/2007 –	120	163	/	/	2.8	4	12
		Voyager 2.8 CRD	ENS	01/2008 –	120	163	/	/	2.8	4	12
For DODGE		Grand Caravan 2.8 CRD	ENS	09/2007 – 08/2011	110	150	/	/	2.8	4	12
For JEEP		Cherokee 2.8 CRD 4×4	ENS	01/2008 – 12/2013	130	177	/	/	2.8	4	12



1.3. 0445115067 Common Rail Injector Parameter

Adaptation System：Common Rail System

Common Rail Injector Series：piezo Series

Parameter Performance：CRI3-16

Matching Accessories：/

Common Rail Injector Type：Piezoelectric Common Rail Injector

Support System Maximum Pressure：1,600bar

Vehicle Configuration Information: /

Common Rail Injector Size： 21 cm*5 cm *5 cm

Common Rail Injector Net Weight：0.78kg

Common Rail Injector Gross Weight：0.8kg

Common Rail Injector Quality：Original New

Common Rail Injector Package Size： 28cm*7 cm *7 cm

Common Rail Injector Type：piezo Piezoelectric Common Rail Injector

Common Rail Injector MOQ：4 Pieces



1.4. 0445115067 Common Rail Injector Customized Service

(1) Common Rail Injector Customized Service: Meet the customized needs of OEM manufacturers for shell lettering, logo engraving, common rail injector internal packaging, common rail injector external packaging and labels customized, etc.

(2) Common Rail Injector Customized Service Requirements:

① The purchase of customized common rail injectors are not less than 10

② The purchase of customized common rail injector packages are no less than 1000 pieces.

③ Customized products involve the need of specify logo, the OEM manufacturer needs to provide trademark authorization and the sample of logo image file.

.  Once the customized common rail injector is sold, it cannot be returned or exchanged if there is no quality problems.



1.5. 0445115067 Common Rail Injector Quality Control

(1) Common Rail Injector Testing

All common rail injectors are tested for electrical characteristics, accuracy, high temperature, low temperature, withstand voltage, leakage, durability, and various working conditions.

(2) Common Rail Injector Assembling

For quality control during the production and installation process of common rail injectors, our company strictly follows the standard product installation data and product installation steps for installation and testing, such as injector stroke test, injector solenoid valve tightening torque test, injector nozzle tightening torque test, etc.

(3) Common Rail Injector Inspection

The factory inspection of the common rail injector is undergone full inspection, random inspection, and batch inspection three inspections. Different brands of test benches are used to test the same common rail injector for a total of more than three times for factory inspection, and the common rail injector installation testing environment are progressed in dust-free workshop.





2. 0445115067 Common Rail Injector Technical Support



2.1. Reasons For 0445115067 Common Rail Injector Not Working Normally

(1) There is air in the oil circuit of the engine fuel system.

(2) Vehicle oil pump oil supply system is not normal.

(3) Engine common rail system oil leakage or pressure limiting valve is damaged.

(4) There is a short circuit, cutting out and poor contact in the wiring harness connected to the common rail injector of the vehicle.

(5) The long-term placement of the common rail injector causes the anti-rust oil to solidify, and the internal components are stuck or the oil holes are blocked.

.  Before installing, carefully check whether other components in the common rail system except the common rail injector are damaged so as to prevent the common rail injector from not working properly after being replaced.





3. 0445115067 Common Rail Injector Purchase and Delivery



3.1. 0445115067 Common Rail Injector  Purchase Purchase Payment Term

Payment Terms:  T/T, PayPal, Alipay, WeChat

.  Please contact our salesmen for specific payment information.



3.2. 0445115067 Common Rail Injector Shipping Ways

Destination in China Areas: SF Express, Debon Express, the corresponding logistics company can be provided according to customer requirements in special cases.

Destinations Out of China’s Areas:  DHL, UPS, FedEx, TNT air, ocean or other shipping methods required by customers.



3.3. 0445115067 Common Rail Injector Lead time

Lead Time: Send out within 3 – 7 working days after receiving payment（Except for special products and special cases）.



3.4. 0445115067 Common Rail Injector Packing

Domestic Express Packaging: Usually wrapped in waterproof scotch tape.

International Express Packaging: Wrapped with waterproof yellow tape After wrapping the black protective film.

Pallet Shipping: Use fumigation free and recycling trays that meet export requirements, and use white wrapping protective film to wrap and bind with cable ties for the outside, also, the products can be packaged according to customers’ requirements.

.  The packing tray is made of plastic and can be recycled.

.  Transparent tape, yellow tape, black wrapping protective film, white wrapping protective film are non-degradable materials, please dispose of them properly.

.  Minors are prohibited from using transparent tape, yellow tape, black wrapping protective film, and white wrapping protective film to avoid personal injury.

No.	1	2	3
Name	Domestic Express Packaging	International Express Packaging	Pallet Shipping
Description	Wrapped by transparent tape	Wrapped with yellow tape after wrapping black protective film	Use pallet that meet export requirements, and use white wrapping protective film to wrap and bind with cable ties
