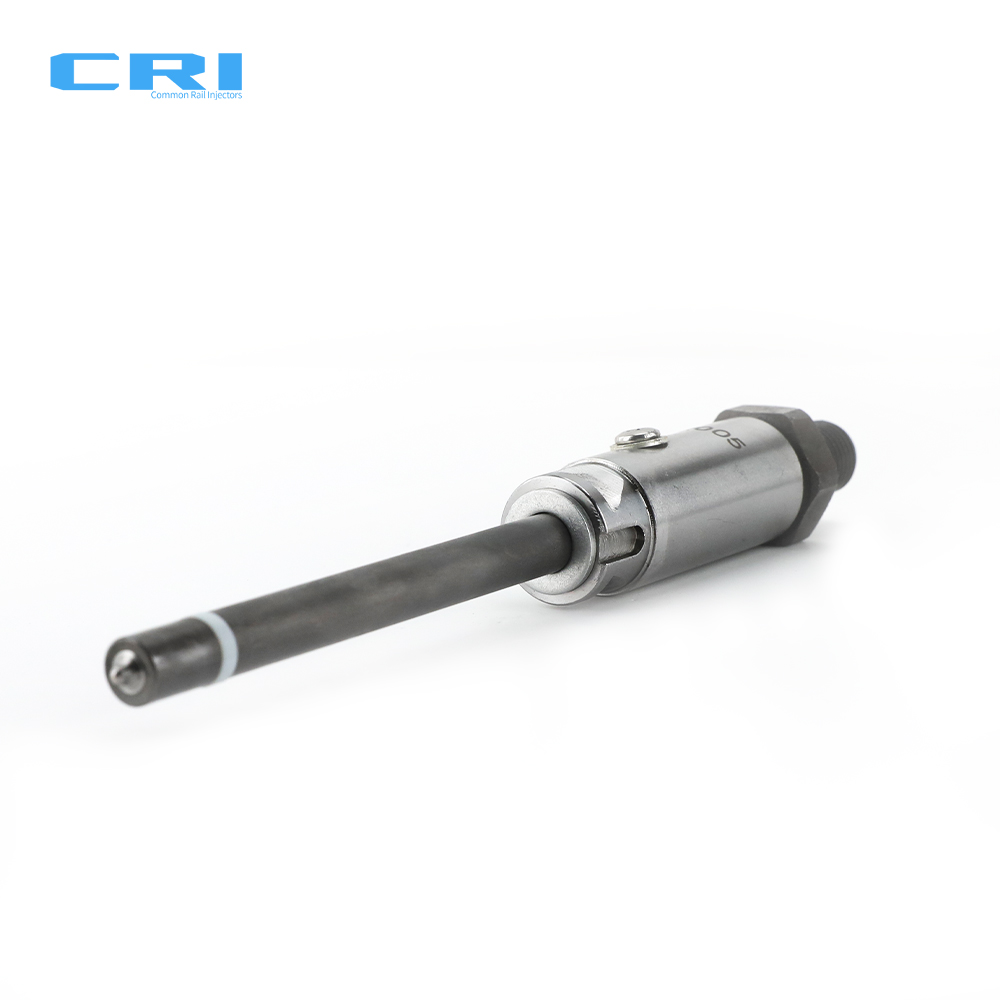

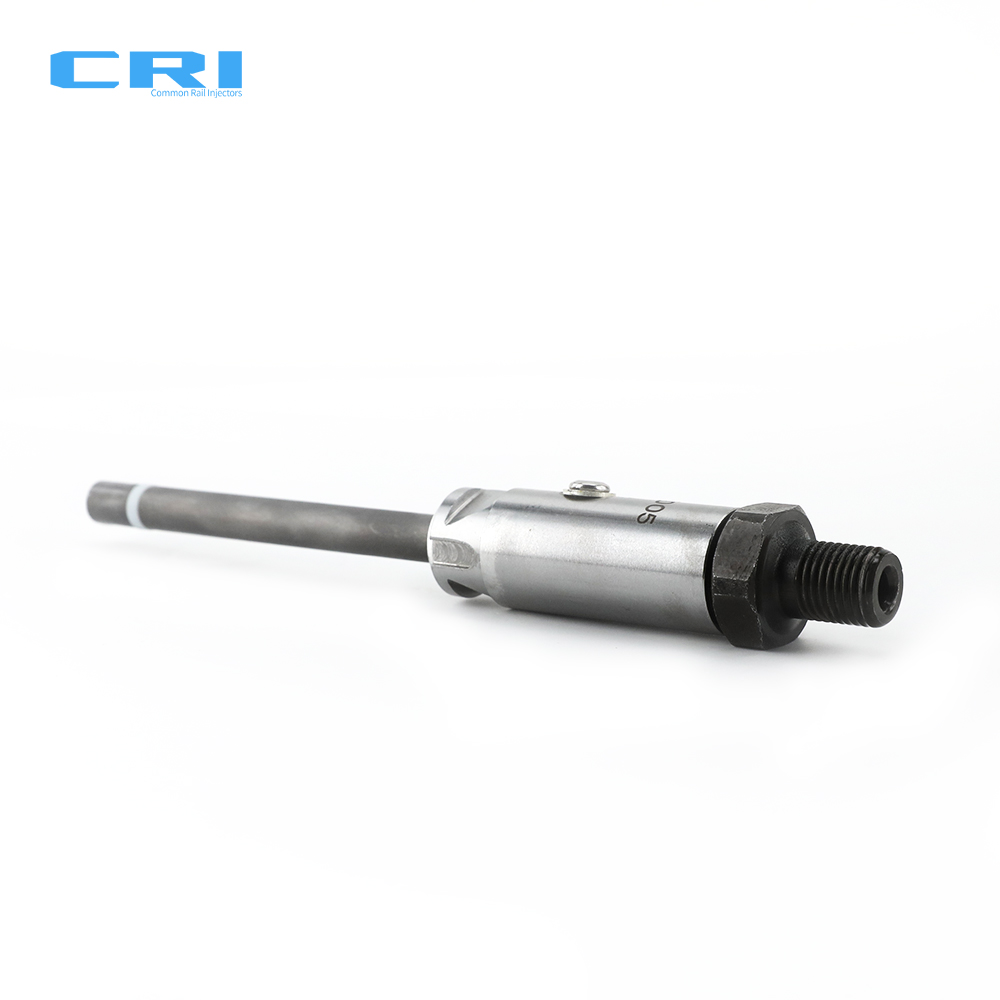

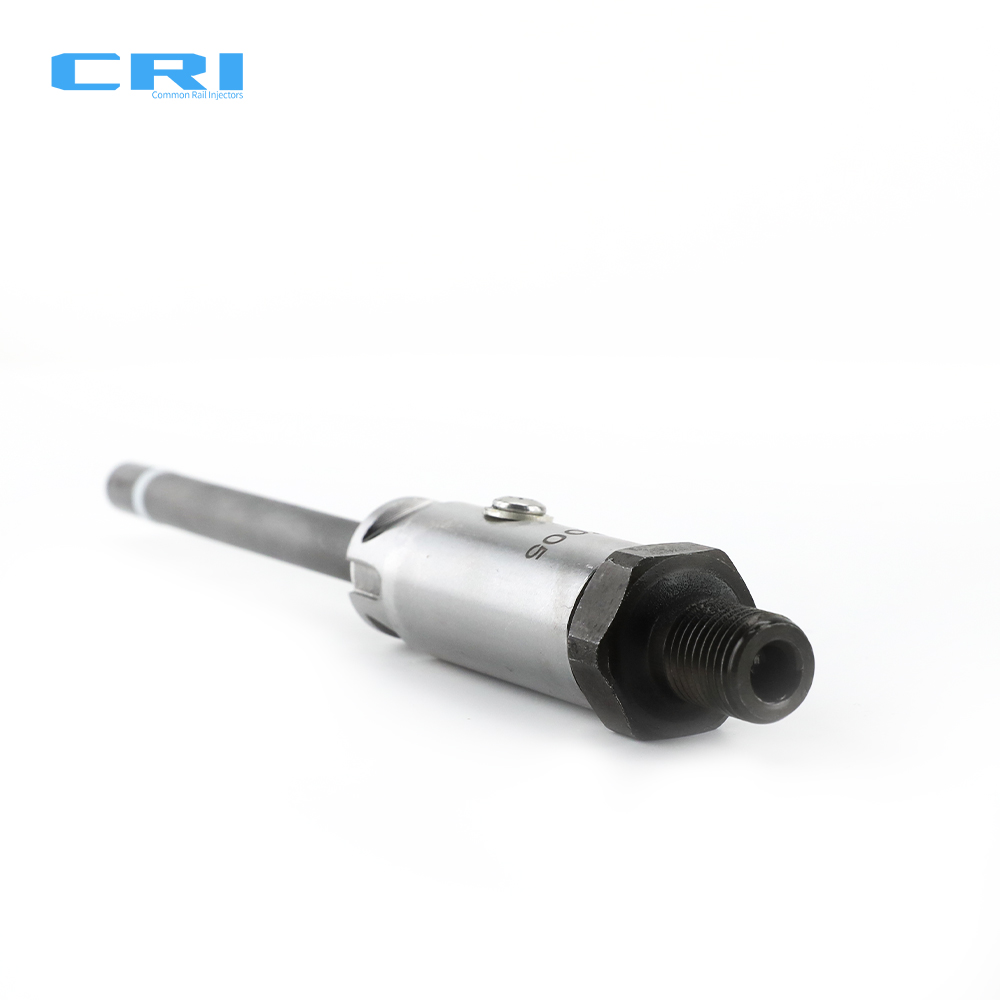

1. 8N-7005 Common Rail Injector Introduction



1.1. 8N-7005 Common Rail Injector Basic Information

Title	8N-7005 Common Rail Injector 3300 Series	Quality
SKU	G1F100008N7005	China Made New



1.2. 8N-7005 Common Rail Injector Common Part Number

(1) Common Rail Injector Exchange Information

Common Rail Injector Part Number	Re-manufactured Part Number	OE Number
8N-7005	0R-1740	/
8N7005	0R1740	/
/	0R-3418	/
/	0R3418	/

(2) Common Rail Injector Application Information

Car Model	Engine Model	Engine Model	Engine Model	Engine Model	Engine Model	Engine Model
For PAVING COMPACTOR	CB-534	CP-643	CP-653	CS-643	CS-653	/
For CRAWLER LOADER	963	973	977	/	/	/
For WHEELED BULLDOZER	814B	/	/	/	/	/
For WHEEL-TYPE LOADER	930	930R	930T	936	936E	936F
	950B/950E	950E	966C	966D	966E	966F
	966G	970F	972G	G936	950B	966F II
For CRAWLER TYPE LUMBER COLLECTOR	120C	125C	527	D4HTSK III	D5HTSK II	/
For WHEEL TYPE LUMBER COLLECTOR	120C	515	518	518C	525	528
	530B	FB518	528B	/	/	/
For ENGINE-MACHINE	3304	3306	/	/	/	/
For PIPE HANGER	571G	572G	/	/	/	/
For GRADER	120G	12G	12H	12H ES	12H NA	140G
	140H	140H ES	140H NA	143H	14G	160G
	160H NA	130G	160H	/	/	/
For TRACK-TYPE TRACTOR	140 141 143 4 4A 5 55 56 56H 57 57H 5A 5P 5S 6 6A 6S 6SU	7 7A 7S 7S LGP 7SU 7U D4E D4E SR D4H XL D4H D4H III D5	D5B D5E D5H D5H XL	D6D D6D SR D6E D6E SR D6F SR	D6G D6G SR D6G2 XL D6GC D6H D6H II	D6H XL D6H XR D7G D7H
For CHALLENGER	65	65B	65C	65D	70C	/
For WHEELED SELF-PROPELLED SCRAPER	615 615C 615C II	621E 621S	627B 627E 627F	637D 637E 639D	/	/
For ARTICULATED UNLOADING TRUCK	D250B D25C D25D	D300B D300D	D30C D30D	D350C D350D D35C	/	/
For ENGINE – INDUSTRIAL	3304	3304B	3306	3306B	/	/
For EARTHWORK COMPACTOR	815B	816B	/	/	/	/
For EXCAVATOR	215 215B 215C 215D 219 219D	225 225B 225D 229 229D 235	235B 235C 235D 330 L 330 LN	330-A 330-A L 330-A L 330-A LN	350-A 350 L 350-A L E240 E300	E300B EL240 EL300 EL300B
For ENGINE – GENERATOR SET	3304	3304B	3306B	/	/	/



1.3. 8N-7005 Common Rail Injector Parameter

Common Rail Injector Adaptation System: HEUI System

Common Rail Injector Series: 3300 Series

Common Rail Injector Type: Electromagnetic Common Rail Injector

Vehicle Configuration Information: 3300 Engines

Common Rail Injector Size: 20cm* 3.5cm *3.5cm

Common Rail Injector Net Weight: 0.32kg

Common Rail Injector Gross Weight: 0.4kg

Common Rail Injector Quality: China Made New

Common Rail Injector Package Size: 22 cm* 4 cm *4 cm

Common Rail Injector Type: Common Rail Injector

Common Rail Injector MOQ: 4 Pieces



1.4. 8N-7005 Common Rail Injector Customized Service

(1) Common Rail Injector Customized Service: Meet the customized needs of OEM manufacturers for shell lettering, logo engraving, common rail injector internal packaging, common rail injector external packaging and labels customized, etc.

(2) Common Rail Injector Customized Service Requirements:

① The purchase of customized common rail injectors are not less than 10

② The purchase of customized common rail injector packages are no less than 1000 pieces.

③ Customized products involve the need of specify logo, the OEM manufacturer needs to provide trademark authorization and the sample of logo image file.

.  Once the customized common rail injector is sold, it cannot be returned or exchanged if there is no quality problems.



1.5. 8N-7005 Common Rail Injector Quality Control

(1) Common Rail Injector Testing

All common rail injectors are tested for electrical characteristics, accuracy, high temperature, low temperature, withstand voltage, leakage, durability, and various working conditions.

(2) Common Rail Injector Assembling

For quality control during the production and installation process of common rail injectors, our company strictly follows the standard product installation data and product installation steps for installation and testing, such as injector stroke test, injector solenoid valve tightening torque test, injector nozzle tightening torque test, etc.

(3) Common Rail Injector Inspection

The factory inspection of the common rail injector is undergone full inspection, random inspection, and batch inspection three inspections. Different brands of test benches are used to test the same common rail injector for a total of more than three times for factory inspection, and the common rail injector installation testing environment are progressed in dust-free workshop.





2. 8N-7005 Common Rail Injector Technical Support



2.1. Reasons For 8N-7005 Common Rail Injector Not Working Normally

(1) There is air in the oil circuit of the engine fuel system.

(2) Vehicle oil pump oil supply system is not normal.

(3) Engine common rail system oil leakage or pressure limiting valve is damaged.

(4) There is a short circuit, cutting out and poor contact in the wiring harness connected to the common rail injector of the vehicle.

(5) The long-term placement of the common rail injector causes the anti-rust oil to solidify, and the internal components are stuck or the oil holes are blocked.

.  Before installing, carefully check whether other components in the common rail system except the common rail injector are damaged so as to prevent the common rail injector from not working properly after being replaced.





3. 8N-7005 Common Rail Injector Purchase and Delivery



3.1. 8N-7005 Common Rail Injector Payment Term

Payment Terms:  T/T, PayPal, Alipay, WeChat

.  Please contact our salesmen for specific payment information.



3.2. 8N-7005 Common Rail Injector Shipping Ways

Destination in China Areas: SF Express, Debon Express, the corresponding logistics company can be provided according to customer requirements in special cases.

Destinations Out of China’s Areas:  DHL, UPS, FedEx, TNT air, ocean or other shipping methods required by customers.



3.3. 8N-7005 Common Rail Injector Lead time

Lead Time: Send out within 3 – 7 working days after receiving payment（Except for special products and special cases）.



3.4. 8N-7005 Common Rail Injector Packing

Domestic Express Packaging: Usually wrapped in waterproof scotch tape.

International Express Packaging: Wrapped with waterproof yellow tape After wrapping the black protective film.

Pallet Shipping: Use fumigation free and recycling trays that meet export requirements, and use white wrapping protective film to wrap and bind with cable ties for the outside, also, the products can be packaged according to customers’ requirements.

.  The packing tray is made of plastic and can be recycled.

.  Transparent tape, yellow tape, black wrapping protective film, white wrapping protective film are non-degradable materials, please dispose of them properly.

.  Minors are prohibited from using transparent tape, yellow tape, black wrapping protective film, and white wrapping protective film to avoid personal injury.

No.	1	2	3
Name	Domestic Express Packaging	International Express Packaging	Pallet Shipping
Description	Wrapped by transparent tape	Wrapped with yellow tape after wrapping black protective film	Use pallet that meet export requirements, and use white wrapping protective film to wrap and bind with cable ties
